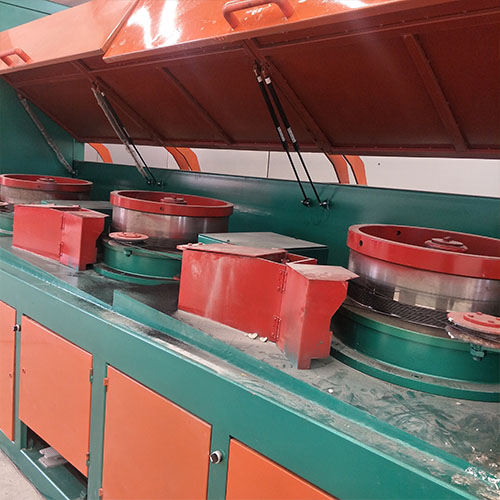

The straight line wire drawing machine is a high-end wire drawing machine developed and produced by digesting and absorbing imported technology. Main features: the reel adopts narrow slot water cooling, the drawing die adopts direct water cooling, and the cooling effect is good. It adopts a strong narrow V belt and standard hard tooth surface gear Box transmission, high transmission efficiency, low noise. It adopts a fully enclosed protection system, which has good safety and smooth drawing. It adopts AC frequency conversion control technology (or DC programmable control system), screen display, high degree of automation, easy operation, and pull The product quality is excellent.
Suitable for drawing all kinds of metal wires below 6.5 mm, especially suitable for drawing high quality welding wire, gas shielded welding wire, aluminum clad steel wire, prestressed steel wire, hose steel wire, spring steel wire, steel cord steel wire and medium and high carbon steel wire Wait.
Suitable drawing materials: welding rod, welding wire, low carbon steel wire, high carbon steel wire and other metal wires
USD11000-USD95800
What information should i give to you to make proposal?
1.What max inlet and minimum outlet wire diameter you need
2.What will be the finished wire usage
3.What is your industrial voltage and frequency
| Model | LZ400 | LZ550 | LZ700 | |
| Inlet Wire Dia. | mm | 3.2 | 6.5 | 8 |
| Outlet Wire Dia. | mm | 0.8 | 2.0 | 5.4 |
| Number of drawing capstan | 8 | 9 | 4 | |
| Motor | Inverted motor | Inverted motor | Inverted motor | |
| Single Power | kw | 11 | 22 | 22 |
| Max speed | m/s | 12 | 12 | 10 |
| Dia.of capstan | mm | 400 | 550 | 700 |
| Material of the capstan | Steel coated tungsten carbide | Steel coated tungsten carbide | Steel coated tungsten carbide | |
| Warranty of capstan | month | 24 | 24 | 24 |
| Main steel plate thickness | mm | 16 | 16 | 16 |
| Warranty | month | 12 | 12 | 12 |
| Drive mode | Deduction gear | Deduction gear | Deduction gear | |
| Control system | PLC | PLC | PLC | |
| PLC | Siemens | Siemens | Siemens | |
| Operation | Touch screen | Touch screen | Touch screen |

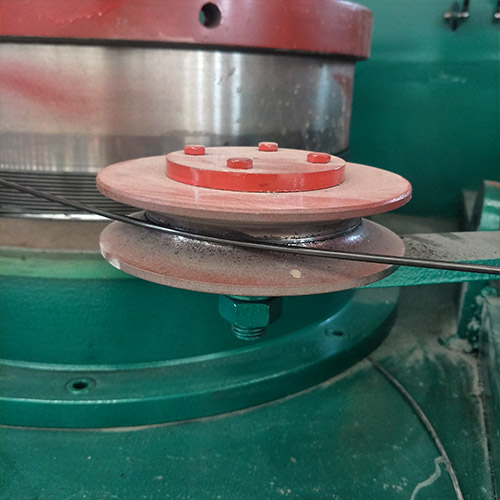

The drums adopts cast steel sprayed with tungsten carbide (or surfacing wear-resistant alloy), the taper design is reasonable, to ensure that the wire does not break, and ensure the wire is not chaotic, the hardness HRC>60, the wear resistance is good, the cooling method adopts narrow slot water cooling and annular air cooling .
Transmission System
LZ350-LZ560 wire drawing machine adopts one-stage or two-stage powerful narrow V transmission, and the transmission is stable. The LZ450-1270 transmission system adopts a powerful narrow V-belt + standard hard-toothed gearbox transmission, high coincidence, stable transmission and low noise.
