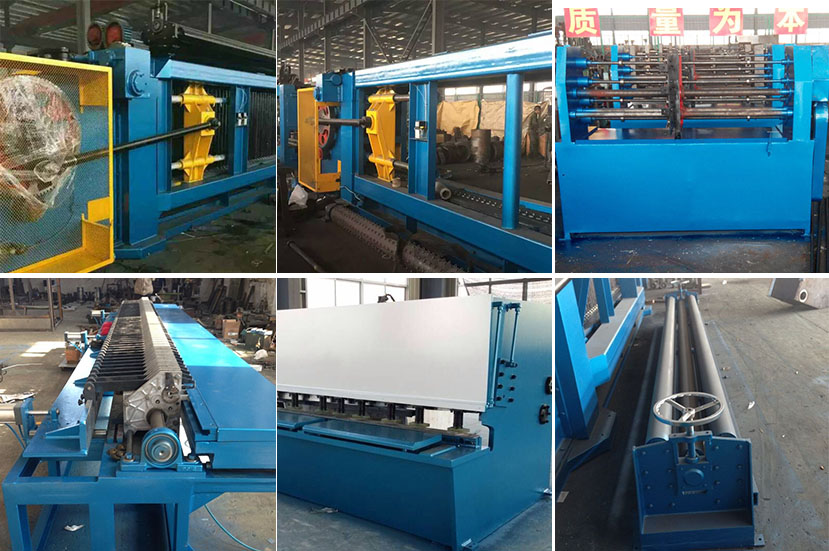

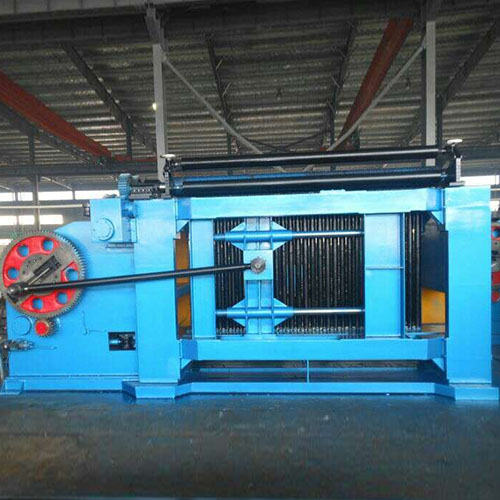

Gabion mesh machine, also called heavy duty hexagonal wire mesh machine or gabion basket machine, Stone cage machine, Gabion box machine, is to produce the hexagonal wire mesh for reinforcement stone box use.
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.We can manufacture gabion machine according to customer request. We can provide you 2.3m, 3.3m , 4.3m and 5.3m type machine.
The following is for 3.3m type machine , please refer the details.
|

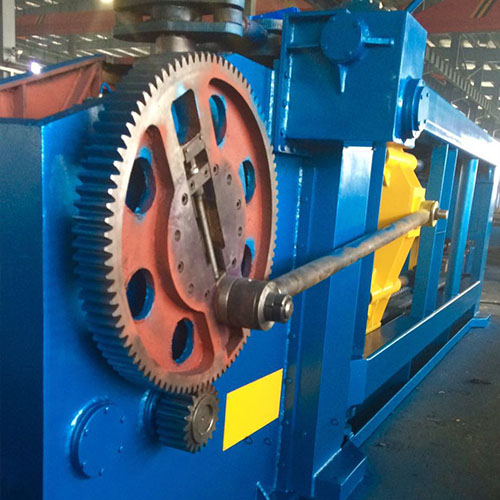

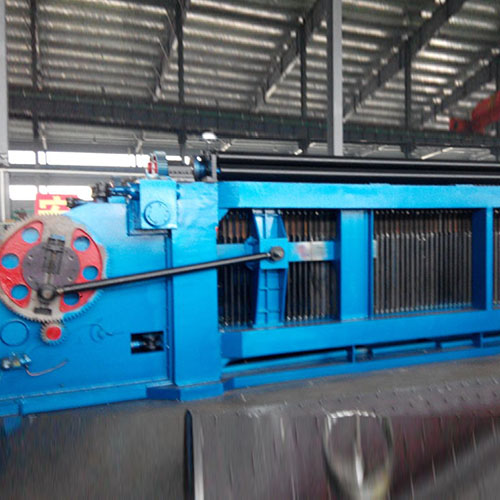

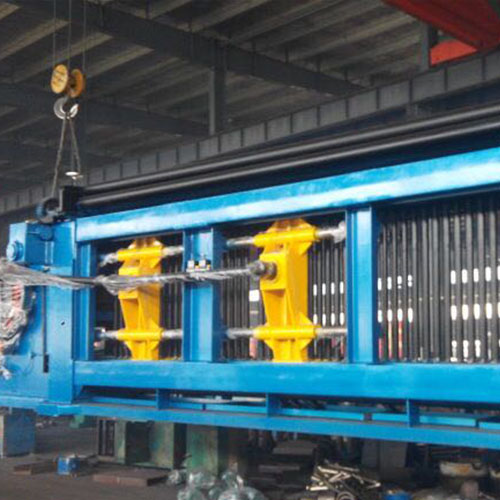

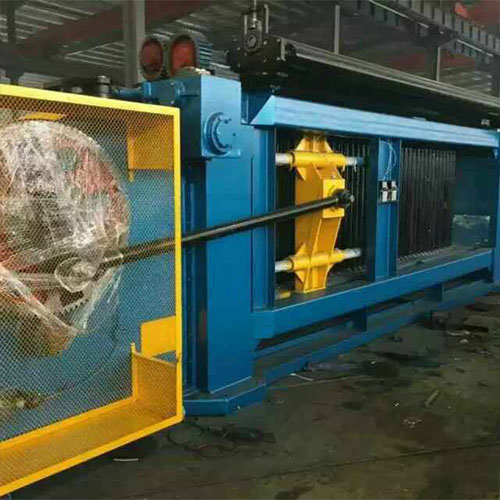

Main Weaving Machine |
|||
|
Hole Size |
140x140mm,140x120mm |
Wire Diameter |
2-4mm |
|
Mesh width |
3.3m |
Weight |
13T |
|
Motor |
15kw |
Production capacity |
190 square meters /hour |
|
Wire Tension Machine |
|||
|
Outside dimension |
4100*700*700 |
Weight |
480kg |
|
Wire Spring Winding Machine |
|||
|
Outside dimension |
2030*900*1450mm |
Spring pole quantity |
4 |
|
Spring winding speed |
450r/min |
Spring winding length |
1000mm |
|
Spring winding layer |
4-6 |
Spring winding wire diameter |
2-4mm |
|
Weight |
480kg |
Motor |
2.2kw+3.0kw |
|
Mesh rolling machine |
|||
|
Outside dimension |
6050*800*1200mm |
Weight |
650kg |
|
Motor |
1.5KW |
Rolling diameter |
180mm |
|
Wire straightening and cutting machine |
|||
|
Outside dimension |
4600*500*550mm |
Weight |
220kg |
|
Motor |
1.5kw &0.75kw |
Wire diameter |
2-4mm |
|
Max Straightening length |
4m |
|
|
|
Wire butt welding machine |
|||
|
Voltage |
380V/50HZ(customized) |
Rated Capacity |
7KVA |
|
Rated current of primary winding |
18.4a |
Welding wire diameter |
2-4mm |
|
Duty cycle |
20% |
|
|
